Encoder, heavy duty,HOG8DN Baumer-Bingo Automation

HOG8DN2048CI-16H7

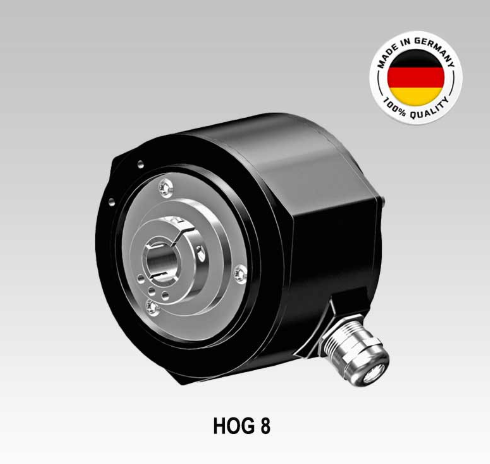

Baumer Heavy Duty Encoder HOG8DN2048CI-16H7

Technical Data

Manufacturer :Baumer Hübner

Shaft Type :Through Hollow Shaft

Shaft (S)/Bore (B) Dia. :B: 16 mm

Mounting Type :Torque Arm/Support Plate

Encoder Type :Incremental

Output Signal :HTL-C

PPR :2048 ppr

Supply Voltage :9 to 26 Vdc

Connection Type :Terminal Connection - Radial

Operating Temperature :From -30 °C to +85 °C

Protection :IP 54

Approval :CE, UL Approval / E217823

Weight :0.65 KG
