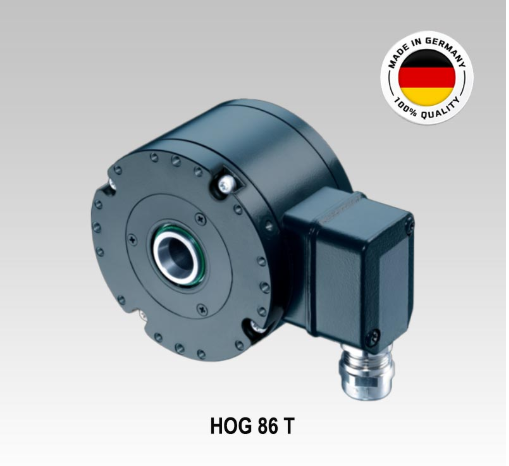

HOG86TP2DN1024I

HOG86TP2DN1024I

Technical Data

Manufacturer :Baumer Hübner

Shaft Type :Blind Hollow Shaft

Shaft (S)/Bore (B) Dia. :B: 12 mm

Mounting Type :Support Plate R63

Encoder Type :Incremental

Output Signal :HTL

PPR :1024 ppr

Supply Voltage :9 to 30 Vdc

Connection Type :Terminal Box - Radial

Operating Temperature :From -40 °C to +100 °C

Protection :IP 66

Approval :CE, UL/CSA

Weight :1.3 KG
