HOG10DN1024I-LR-16H7 + DSL.E,11091405-Bingo Automation

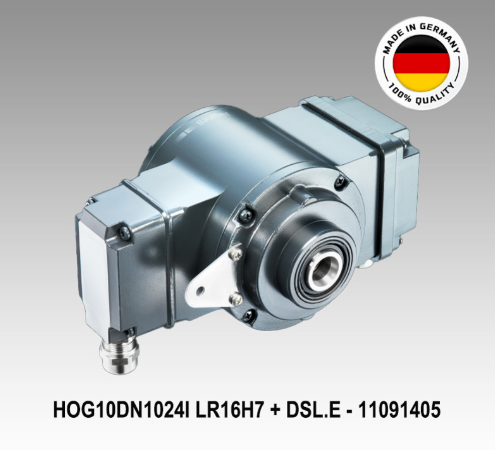

HOG10DN1024I-LR-16H7 + DSL.E - 11091405 HeavyDuty Combination Units

Technical Data

Manufacturer :Baumer Hübner

Shaft Type :Blind Hollow Shaft

Shaft (S)/Bore (B) Dia. :B: 16 mm

Mounting Type :Support Plate R69

Encoder Type :Incremental

Output Signal :HTL

PPR :1024 ppr

Supply Voltage :9 to 30 Vdc

Connection Type :Terminal Box - Radial

Operating Temperature :From -30 °C to +85 °C

Protection :IP 66

Approval :CE

Weight :3.1 KG

Interface (Speed Switch) :RS485

Switching Accuracy (Speed Switch) :+/-2%

Switching Outputs (Speed Switch) :2 Outputs, Speed Control and 1 Control Output

Output Switching Capacity (Speed Switch) :
