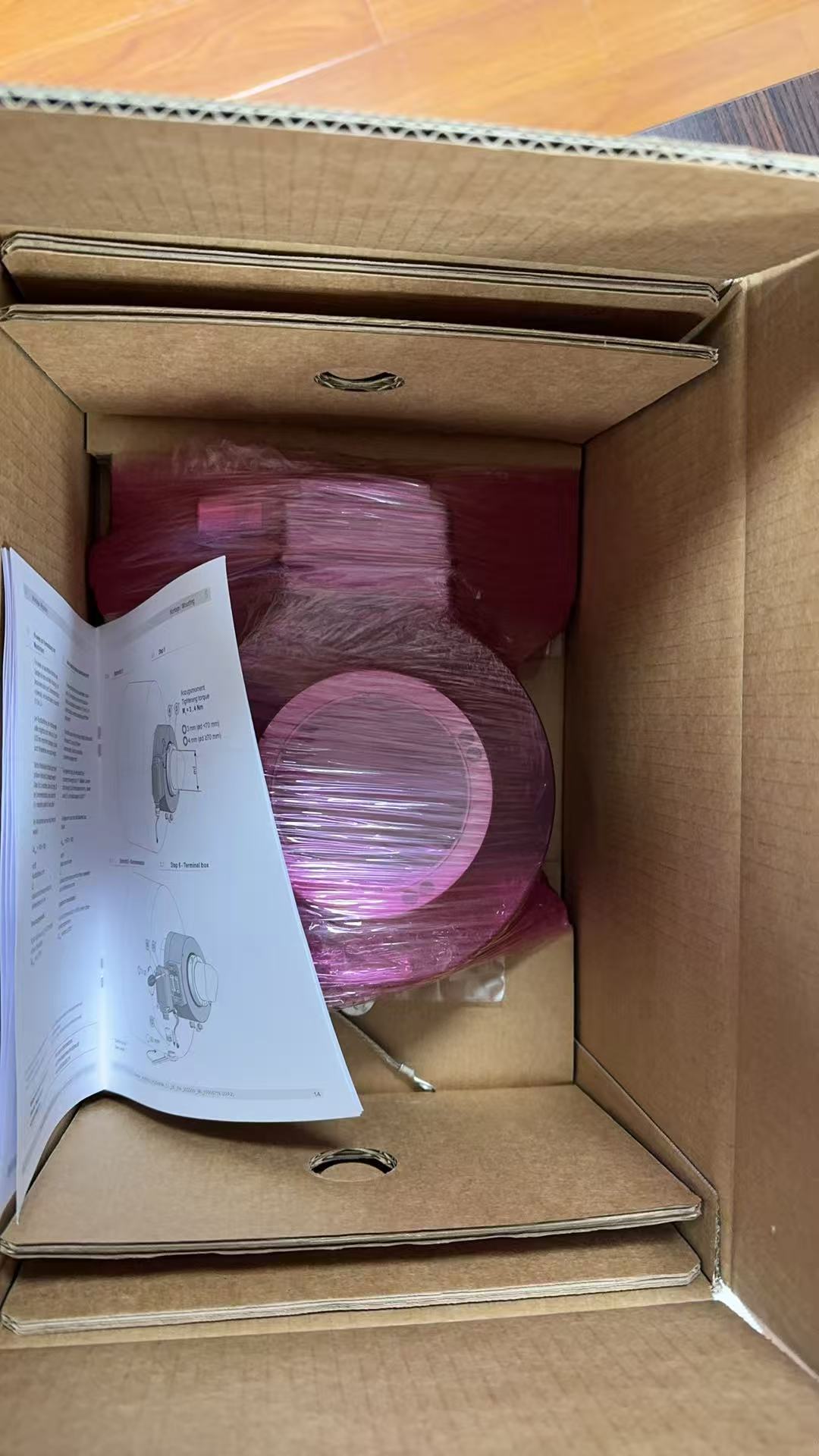

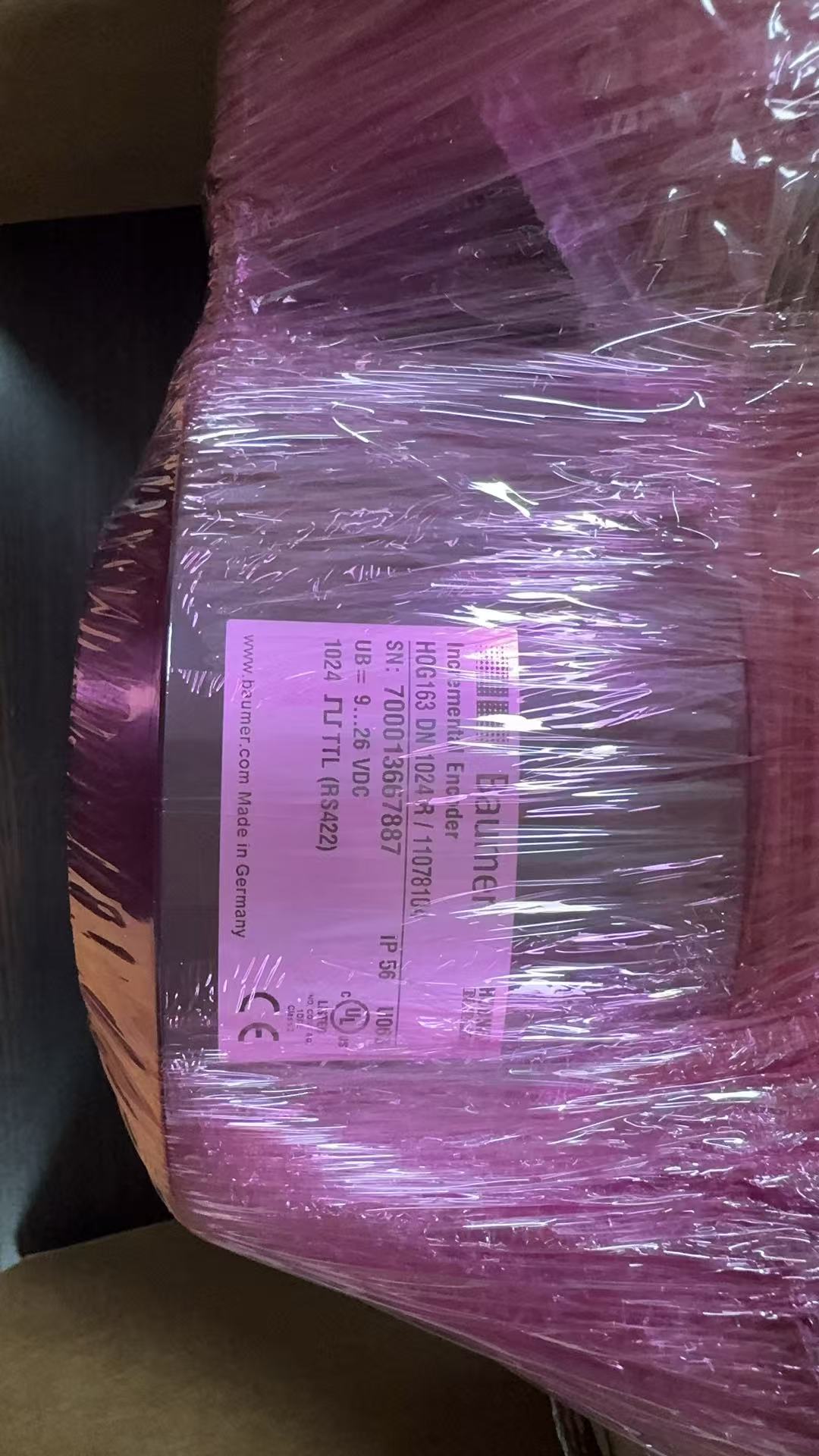

The Baumer HOG 163 is an incremental encoder with optical measurement that is used to accurately determine the position and speed of industrial systems. This encoder is highly accurate and reliable, making it ideal for a wide range of industrial applications.
Datasheet
Electrical specifications:
-
Supply voltage: 9...30 VDC, 5 VDC ±5%, 9...26 VDC
-
No-load consumption: ≤100 mA
-
Number of pulses per revolution: 250 ... 5000
-
Phase shift: 90° ± 20°
-
Duty cycle: 40...60 %
-
Counting signal: Zero pulse, 90° width
-
Measurement method: Optical
-
Output frequency: ≤120 kHz
-
Output signals: K1, K2, K0 + inverted
-
Output stages: HTL, TTL/RS422
-
Interference resistance: EN 61000-6-2
-
Radiated interference: EN 61000-6-3
-
Approvals: CE, UL approval / E217823
Mechanical design:
-
Size (flange): ø158 mm
-
Shaft type: ø38...75 mm (hollow shaft)
-
Permissible shaft load: ≤350 N axial, ≤500 N radial
-
Protection according to EN 60529: IP 56
-
Operating speed: ≤6000 rpm (mechanical)
-
Operating torque: typically 17 Ncm
-
Rotor moment of inertia: 28.5 kgcm² (ø50)
-
Material: Housing: aluminum alloy, shaft: stainless steel
-
Operating temperature: -40...+85 °C
-
Vibration: IEC 60068-2-6, 10 g, 10-2000 Hz
-
Shock: IEC 60068-2-27, 100 g, 6 ms
-
Corrosion resistance: IEC 60068-2-52, salt spray for environmental conditions C4 according to ISO 12944-2
-
Protection against explosion: II 3 G Ex ec IIC T4 Gc (gas), II 3 D Ex tc IIIB T135°C Dc (dust) (only with ATEX option)
-
Connection: Terminal box, 2x terminal box (with option M)
-
Weight: Approx. 5.4 kg (ø48), 3.5 kg (ø75), 3.9 kg (ø75 with option M)
