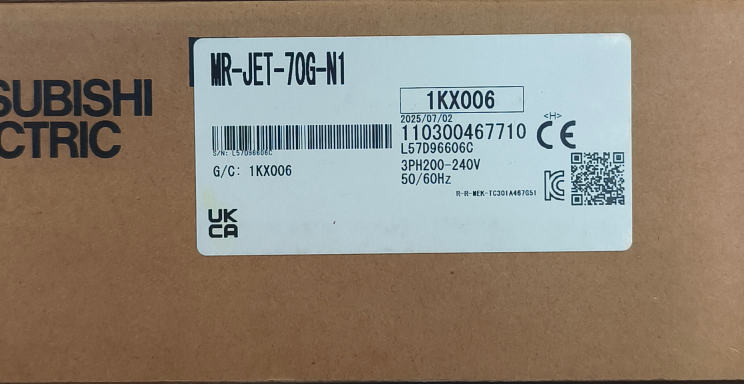

Mitsubishi Electric MR-JET-70G-N1

Specifications

Primary brand

Mitsubishi Electric

Main function

AC servo drive

Product series / family name

MELSERVO JET series

Sub-range name

MR-JE series

Functions

AC motion servo drive / amplifier
sine wave PWM control/current control method
point table method
safety parameter setting
advanced vibration suppression control II
adaptive filter II
robust filter
quick tuning
auto tuning
one-touch tuning
tough drive function
drive recorder function
machine diagnosis function
pwr. monitoring function
lost motion compensation
super trace control
continuous operation to torque control mode

Design

built-in dynamic brake
built-in regenerative resistor
natural cooling

Supply voltage (AC)

200Vac-240Vac (200V class; 220Vac / 230Vac)

Type of network

Single-phase input (2P) or 3-phase input (3P)

Rated current

5.8A

Rated active power (kW)

750W / 0.75kW

Protection functions

overcurrent shut-off
regenerative overvoltage shut-off
overload shut-off (electronic thermal)
servo motor overheat protection
encoder fault protection
regenerative fault protection
undervoltage protection
instantaneous power failure protection
overspeed protection
excessive error protection
magnetic pole detection protection
linear servo control fault protection

Communication protocol

EtherCAT

Digital inputs

1 x digital input (24Vdc; sink/source) (EM2)
1 x digital input (24Vdc; sink/source) (LSP)
1 x digital input (24Vdc; sink/source) (LSN)

Digital outputs

1 x digital output (rly. contact type) (ALM)
1 x digital output (rly. contact type) (INP)
1 x digital output (rly. contact type) (MBR)

Degree of protection

IP20

Dimensions

H196mm x W60mm x D205mm

Net Height (mm)

196 mm

Net Width (mm)

60 mm

Net Depth (mm)

205 mm

Ambient air temperature for operation

0...+55 °C

Ambient air temperature for storage

-25°C...+70 °C

Current consumption

3.8A input

Order code / Manufacturer SKU

MR-JET-70G-N1

Manufacturer product status

Commercialized

Compliant with standard(s)
